3.0mm To 2.0mm 12F Core Mtp To LC Mpo Patch Cord

  • 1
  • 2
  • 3

Brand Name : Senko / US CONEC / Furukawa Connector

Model Number : MPO UPC -LC UPC MM 12F

Certification : ISO9001:2015

Place of Origin : Shenzhen

MOQ : 1 piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50K

Delivery Time : 3-5 working days

Packaging Details : 1 PCS /PE bag

Connector : MPO 12F UPC MM

Cable diameter : 3.0mm or 3.6mm branch to 2.0mm

Cable color : Orange

Polarity : A,B,C

Contact Now

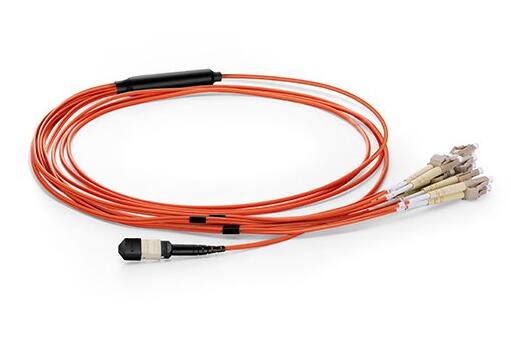

Beige mpo mtp to LC 12F cores fiber optic patch cord 3.0mm to 2.0mm

Product Description


MPO trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.
It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged micro cables structure.



Advantages
  • Imported production and test equipments:EXFO IL&RL Tester/ Domaille Grinding Machine/ SENKO 3D Interferometer
  • Pretty high return loss:≥45dB
  • 5-year Experience R&D Team
  • Customized Production and Service
  • 40G/100G Data Center Solution
Application


1) Data communication network
2) Optical system access network
3) Storage area network fiber channel
4) High density architectures



Technical Parameter
Item Technical Parameter
Connector MPO (Female) LC
Operation Temperature -40°C ~ +80°C
Storage Temperature -40°C ~ +85°C
Insertion Loss

SM: ≤ 0.75dB (standard value),

≤0.35dB (typical value);

MM:≤ 0.50dB (standard value),

≤0.35dB (typical value);

SM:≤ 0.2dB;

MM:≤ 0.2dB;


Return Loss

SM:≥60dB;

MM:≥35dB;

SM:≥60dB;

MM:≥35dB;
The MPO end type Male: with guide pin; Female: without guide pin
Fiber count 8,12&24 MT fiber
The other end of the connector type MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type 250um ribbon fiber,ribbon cable,Bundle fiber optic cable

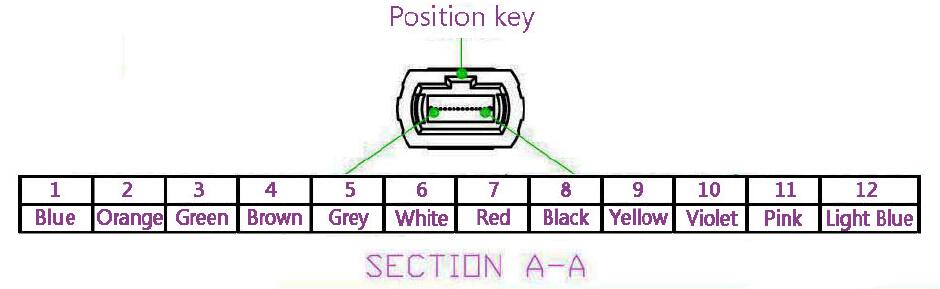

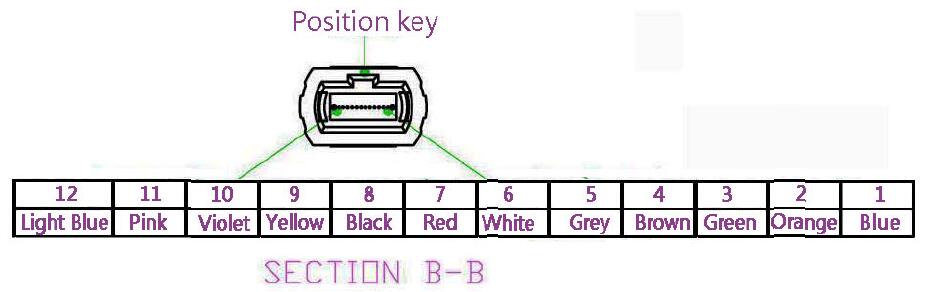

Polarity

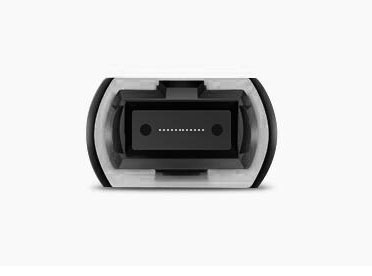

3.0mm To 2.0mm 12F Core Mtp To LC Mpo Patch Cord

3.0mm To 2.0mm 12F Core Mtp To LC Mpo Patch Cord




3.0mm To 2.0mm 12F Core Mtp To LC Mpo Patch Cord





3.0mm To 2.0mm 12F Core Mtp To LC Mpo Patch Cord
