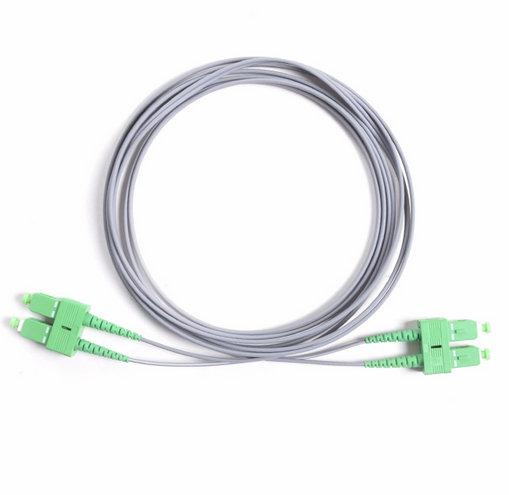

Single Mode Patch Cord Fiber Optic Jumper SC/APC-SC/APC 3M PVC Grey Cable

  • 1
  • 2

Brand Name : CY COM

Model Number : SC/APC-SC/APC

Certification : ISO9001:2015 , RoHS

Place of Origin : Shenzhen , China

MOQ : 20pcs

Price : USD2.2-2.6/PCS

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Delivery Time : 3-15 days

Packaging Details : PE bag

Cable Color : Grey

Length : 3 mtrs

Diameter : 3.0mm

Packaging : 1 pc /PE bag

Contact Now

Fiber optic jumper SC/APC-SC/APC singlemode Duplex 3.0mm 3M PVC grey cable



►Parameter:

Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 φ3.0, φ2.0, φ0.9


►Application:


  1. Active device termination
  2. Telecommunication networks
  3. Video
  4. Multimedia
  5. Premise installations
  6. Local area networks
  7. FTTH and FTTX applications
  8. CATV

►Material of patch cord:

  1. Dust caps: LDPE, transparent (RoHS)
  2. Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
  3. Inner frame: PBT, white (RoHS)
  4. Ferrule: zirconium oxide ceramic material, white (RoHS)
  5. Ferrule’s handle: copper (C3602), nickelage (RoHS)
  6. Mechanical spring: stainless steel (RoHS)
  7. Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
  8. Snap ring: aluminium alloy 6063 (RoHS)
  9. Ring: copper alloy (HPD62), nickelage (RoHS)
  10. Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
  11. Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR and more

►Order information:

  1. Type: SX/DX optional
  2. Ferrule end face: APC/UPC/PC
  3. Diameter: 0.9, 2.0, 3.0mm
  4. Length:1m, 2m, 3m to 120m
  5. Fiber: SM/OM1/OM2/OM3/OM4
  6. Material of jacket: PVC/LSZH/OFNR

Single Mode Patch Cord Fiber Optic Jumper SC/APC-SC/APC 3M PVC Grey Cable
