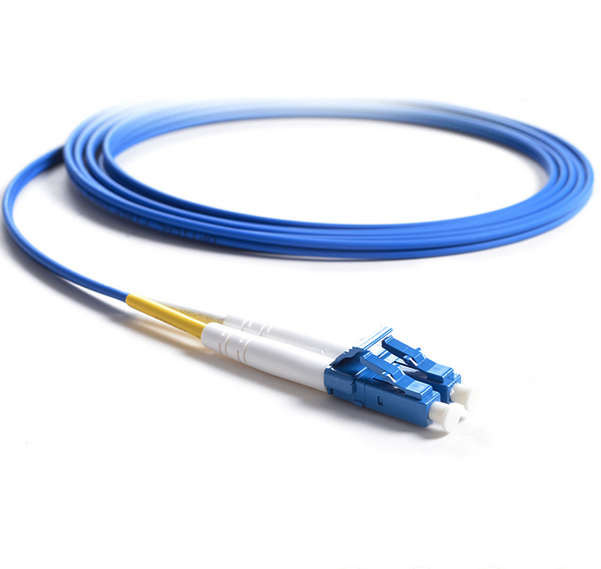

Blue Armored Fiber Optic Patch Cord LC/UPC To LC/UPC SM 2.0mm 10Mtrs LSZH

  • 1
  • 2
  • 3

Brand Name : CY COM

Model Number : SC-FC Armored Patch Cord

Certification : ISO9001:2015 , RoHS

Place of Origin : Shenzhen , China

MOQ : 20pcs

Price : USD4.35-4.65/PCS

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Delivery Time : 3-15 days

Packaging Details : PE bag

Structure : Armored DX

Cable Jacket : PVC ,OFNP,LSZH customized

Fiber type : G657A1,G652D

Length : Can be customized

Contact Now



Chinese supplier of Armored fiber optic patch cord,LC/UPC to LC/UPC SM 2.0mm 10Mtrs LSZH



Features:

  1. Low insertion loss, high return loss
  2. Small, light, high dense connection
  3. Standard exact plastic material
  4. High credibility and stability
  5. Good in repeatability and exchangeability



Specification:



Item Unit FC,SC,LC ST,MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC UPC PC PC PC UPC PC PC UPC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Exchengeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable Diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9



Applications:



♦All applications which traditional patch-cords are used for FTTH

♦Outdoors military use

♦Temperature detector

♦Subway

♦Power plant

♦Duct layout





Order information:



♦For example:FC/UPC-FC/UPC-SM-DX-3.0-5mtrs-LSZH-Armored

♦Type: SX/DX optional

♦Ferrule type: APC/PC

♦Diameter: 0.9, 2.0, 3.0mm

♦Length: 1, 2, 3 to 120m

♦Fiber: SM/OM1/OM2/OM3/OM4

♦Material of jacket: PVC/LSZH/OFNR



Blue Armored Fiber Optic Patch Cord LC/UPC To LC/UPC SM 2.0mm 10Mtrs LSZH
