Length Can be customized PVC,LSZH,OFNP Fiber Optic Patch Cord Simplex SM 3.0mm Inter changeability

Place of Origin : Shenzhen , China

Brand Name : CY COM

Certification : ISO9001:2015 , RoHS

Model Number : SM-SX

MOQ : 20 pcs

Packaging Details : PE bag

Delivery Time : 3-15 days

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Price : USD1.2-5.2/PCS

Cable material : PVC,LSZH,OFNP

Structure : Simplex

Color : Yellow

Length : Can be customized

Contact Now



High Return Loss Fiber Optic Patch Cord Simplex SM 3.0mm Interchangeability



Features:

  • In-line with Telcordia GR-326-CORE standard
  • Low insertion loss, high return loss, high reliability
  • Good repeatability, interchangeability
  • Any diameter of fiber can be chose, 0.9, 2, 3mm ,10g fiber, low smoke and zero halogen can be chosen



Application:

  • Fiber-optic communication system
  • Fiber-optic data transmission
  • LAN, CATV
  • Fiber-optic testing system



Material of patch cord:

  • Dust caps: LDPE, transparent (RoHS)
  • Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
  • Inner frame: PBT, white (RoHS)
  • Ferrule: zirconium oxide ceramic material, white (RoHS)
  • Ferrule’s handle: copper (C3602), nickelage (RoHS)
  • Mechanical spring: stainless steel (RoHS)
  • Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
  • Snap ring: aluminium alloy 6063 (RoHS)
  • Ring: copper alloy (HPD62), nickelage (RoHS)
  • Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
  • Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP

Specification:



Item Unit FC,SC,LC ST,MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC UPC PC PC PC UPC PC PC UPC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Exchengeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable Diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9



Order information:

  • For example: SC/UPC-SC/UPC-SM-SX-2.0-5M-LSZH Armored patch cord
  • Type: SX/DX optional
  • Ferrule type: APC/PC
  • Diameter: 0.9, 2.0, 3.0mm
  • Length: 1, 2, 3 to 120m
  • Fiber: SM/OM1/OM2/OM3/OM4
  • Material of jacket: PVC/LSZH/OFNP

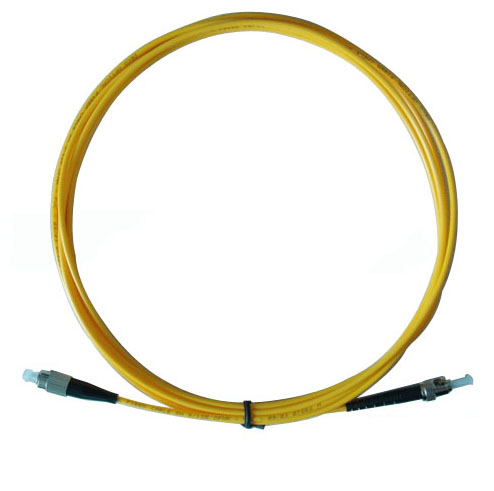

Length Can be customized PVC,LSZH,OFNP Fiber Optic Patch Cord Simplex SM 3.0mm Inter changeabilityLength Can be customized PVC,LSZH,OFNP Fiber Optic Patch Cord Simplex SM 3.0mm Inter changeability

Length Can be customized PVC,LSZH,OFNP Fiber Optic Patch Cord Simplex SM 3.0mm Inter changeability



Length Can be customized PVC,LSZH,OFNP Fiber Optic Patch Cord Simplex SM 3.0mm Inter changeability



Length Can be customized PVC,LSZH,OFNP Fiber Optic Patch Cord Simplex SM 3.0mm Inter changeability



Length Can be customized PVC,LSZH,OFNP Fiber Optic Patch Cord Simplex SM 3.0mm Inter changeability



Competitive Advantage:

Factory Guarantee:
1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.
2.To develop advanced technology ,we have built a stable relationship with scientific research center for fiber optical component home and abroad. with a capacity of 200,000 pieces per month .Our products enjoy great reputation for their advanced and precise quality worldwide.



Quality Advantage:
1.We set up a strict quality guarantee system according to the requirments of international management standard ISO9001:2008.



service advantage:
1.To cater for different requirement from our customers, we offer various OEM service.
2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing
environment and requirements.
