OM3 Aqua Green Duplex Multimode CATV Patch Cord Jumper

Name: OM3 Aqua Green Duplex Multimode CATV Patch Cord Jumper
Brand: CY COM
Price: 1 USD

Buy cheap OM3 Aqua Green Duplex Multimode CATV Patch Cord Jumper product

Brand Name : CY COM

Model Number : LC/UPC- SC/UPC

Certification : ISO9001:2015 , RoHS

Place of Origin : Shenzhen , China

MOQ : 20

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Delivery Time : 3-15 days

Packaging Details : PE bag

Product Name : Fiber Patch Cord

Cable Color : Aqua Green

Cable Dimension : 0.9mm, 2.0mm,3.0mm

Connector : LC/UPC- SC/UPC

Wavelength : 1310nm Or 1550nm

Fiber Type : Simplex And Duplex

Contact Now

OM3 Aqua Green Duplex Multimode CATV Patch Cord Jumper

Feature:

Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic Ferrules

Application:

Telecommunication networks, Gigabit Ethernet

CATV, Video, Multimedia

Active device termination, Premise installations

Industrial, Military

Specification:

Model Name	Optical Fiber Patch Cord
Fiber Type	Multimode (OM3)
Cable Assembilies	Duplex
Jacket Material	PVC (LSZH Negotiable)
Cable Diameter (mm)	2.0mm
Connector Type	LC-SC
End Face	PC
Working Wavelength (nm)	850/1300
Insertion Loss (dB)	≤0.3dB(MAX) ≤0.2dB(Typical)
Return Loss (dB)	UPC ≥35dB
Exchangeability	≤0.2dB
Operating Temperature(℃)	-40～85
Storage Temperature(℃)	-40～85

Quality Guarantee

(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.

(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,

2；IPQC inspects the production line to ensure that the production meets the quality requirements.

3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements

(3) Optical Test. Our products comply with IEC and ITU standards

(4) At least 30% spot test by Quality Assurance Department after the products finished.

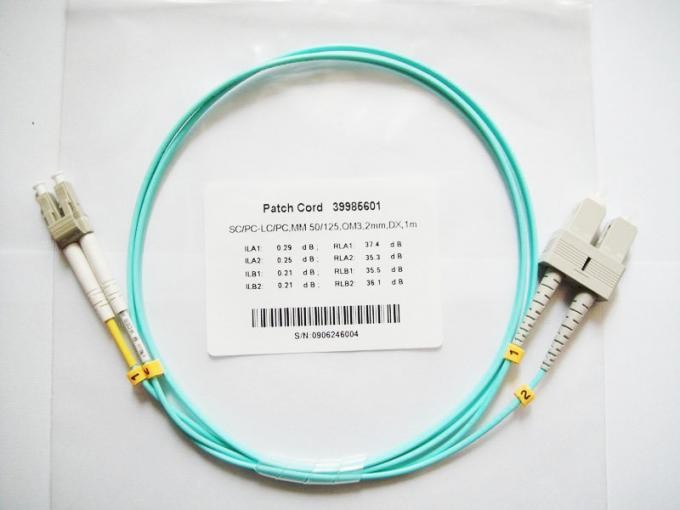

Product picture

OM3 Aqua Green Duplex Multimode CATV Patch Cord Jumper

Factory Picture

Packing
