Black Wall mounted 12 Fiber Optic Terminal Box cold rolled steel sheet, electrostatic spraying

Wall mounted 12 Fiber Optic Terminal Box cold rolled steel sheet, electrostatic spraying

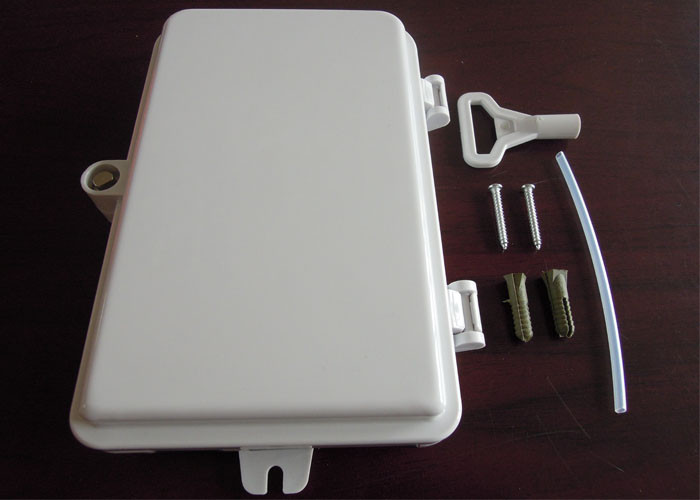

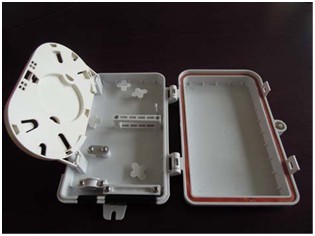

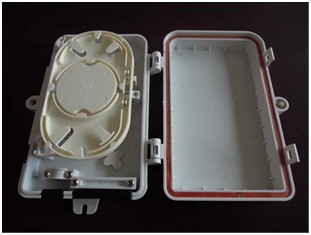

CY/FB-104C, indoor/outdoor, light and compact, Customer Terminal Box,4 cores

Introduction:

FTTH model/ C type terminal box is light and compact, especially suitable for protective connection of fiber

cables and pigtails in FTTH. Widely used in the end termination of residential buildings and villas, to fix and

splice with pigtails; Can be installed on the wall; May adapt variety of optical connection styles; Optical fiber can

be managed effectively.

Features:

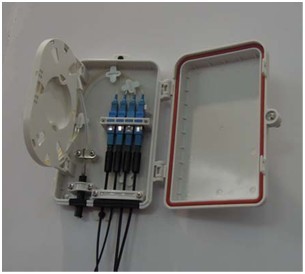

1.1 This box could be used for wall-mounted applications;

1.2 Suit for Outdoor & Indoor.

1.3 Waterproof, Anti-UV, Ultra violet resistant and rainfall resistant.

1.4 Light weight, small cubage, small installation size, realiable sealing.

1.5 Could be connected FTTH Drop cables inside.

1.6 The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method, which is better to use

in outdoor for high sealing and waterproof.

Adapter port :

Could be used for LC Duplex, SC ,FC Adapter；

LC TYPE SC TYPE FC TYPE

Cable port:

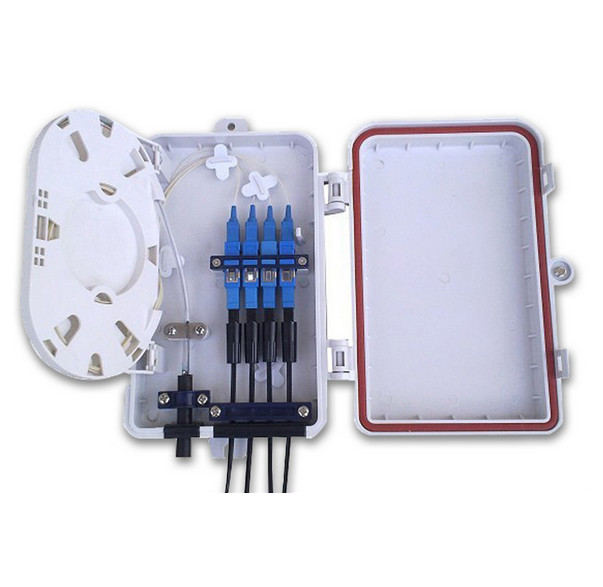

Could be connected 1 inlet ports, 4 outlet ports.

Cable diameter(mm): φ7~φ10

Main Technical Indexes

2.1 Environmental Temperature:－40℃～60℃;

2.2 Max capacity: 4 fibers;

2.3 Application for outdoor, IP65 grade

2.4 Material: High impact plastic.

Dimension:

Application

optical terminal boxes

optical communication devices
