FC APC Fiber Optic Connector green out housing 2.0/3.0mm ISO9001:2015 certificate

Name: FC APC Fiber Optic Connector green out housing 2030mm ISO90012015 certificate
Brand: CY COM
Price: 0.24 USD

Buy cheap FC APC Fiber Optic Connector green out housing 2.0/3.0mm ISO9001:2015 certificate product

Place of Origin : Shenzhen , China

Brand Name : CY COM

Certification : ISO9001:2015 , RoHS

MOQ : 100pcs

Packaging Details : 3000units/cartern

Delivery Time : in 2-5 days

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 20000pcs per day

Model Number : FC/APC

Price : usd0.24-0.32/pc

Color : Green

Certificate : Rohs report

Cable diamater : 0.9,2.0,3.0 mm

Contact Now

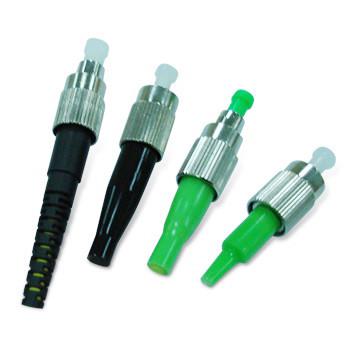

FC APC Fiber Optic Connector green out housing 2.0/3.0mm ISO9001:2015 certificate

FC APC Fiber Optic Connector green out housing 2.0/3.0mm ISO9001:2015 certificate

Feature:

Low insertion loss and return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment

Availability:

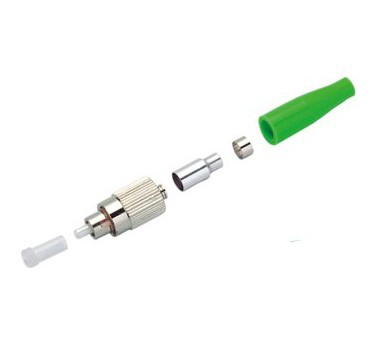

The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.
PC and APC are available

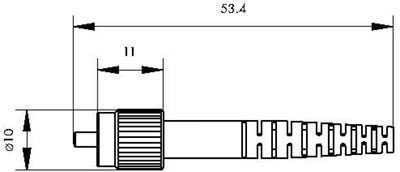

Mechanical Drawings:

FC APC Fiber Optic Connector green out housing 2.0/3.0mm ISO9001:2015 certificate

Specifications:

Item	Single mode	Multi mode
Insertion loss	PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB	＜0.3dB
Return loss	PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB	＞25dB
Insert-pull test	1000(times) ＜0.2dB
Operating temperature	-40℃~ +80℃
Ceramic ferrule spec	125.5um concentricity deviations: ＜1um	127um concentricity deviations: ＜3um
Suitable fiber	PC/APC(9/125um)	PC(50/125um, 62.5/125um)

Application:

1. CATV, metro test equipment; FTTH;

2. Telecommunication networks;

3. Local area networks (LAN);

4. Wide area networks (WAN);

5. Premise installations;

6. Data processing networks;

7. Video and military active device termination.

8. Optical Distribution Frame

9. Optical Network Equipments
