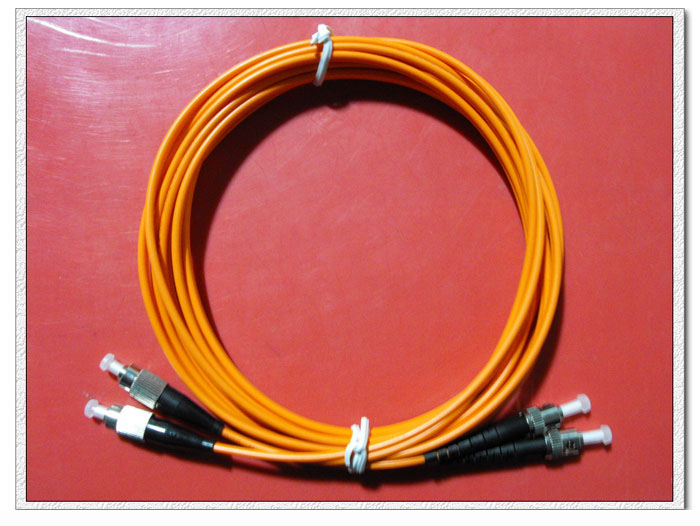

Fiber Optic Patch Cord FC To ST Multimode Duplex In Industrial

Fiber Optic Patch Cord FC To ST Multimode Duplex In Industrial
A patch cord is a fiber optic cable used to attach one device to another for signal routing.


Features:

1. Low insertion loss, high return loss
2. High dense connection, easy for operation
3. High credibility and stability
4. Good in repeatability and exchangeability

Application:

• FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
• Video transmission , Data transmission
• Active Device Termination
• Premise Installations
• Telecommunication and Data processing Networks
• Industrial, medical & military
• Systems Integration for Long Haul, Metro and Access Network

Specification:

Ordering Information:
ST/PC–FC/PC-SM- SX-Φ3.0–1M
①  ②       ①  ②    ③   ④   ⑤    ⑥
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC ( ST/APC is not available)
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH, OM3, OFNR, OFNP
