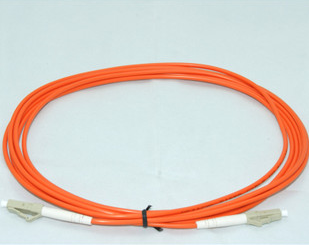

LC-LC Simplex Multimode Fiber Optic Patch Cord In FTTX + LAN
Quick Details
- Ferrule end-face:UPC,APC
- Cable diameter:3.0mm, 2.0mm, 0.9mm, 0.25mm
- Cable length:1M, 3M, 5M, customized
- Cable Jacket:PVC, LSZH
Description:
Telcordia style boots LC stands for Lucent connector,which is a small form-factor fiber optic connector,half the size of the ST,PVC fiber optic cable.
Application:
Usage:Testing equipment,FTTX+LAN,Optical fiber CATV,Optical communication system,
Telecommunication
Specification:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 |
| SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC |
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
Availabilities:
- -Full specifications, FC, SC, ST, LC, MTRJ, E2000, DIN, D4, SMA, etc.
- -Simplex and Duplex assemblies available
- -Singlemode and multimode available
- -PC, UPC and APC polishing available
- -Hybrid patch cords are available upon request
- -Fan-out available (Ribbon type / bundle type)
- -Pigtail available
- -Loopback available
- -Customized lengths upon request
- -100% tested before shipping
Competitive Advantage:
Factory Guarantee:
1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.
2.To develop advanced technology ,we have built a stable relationship with scientific research center for
fiber optical component home and abroad. with a capacity of 200,000 pieces per month .Our products
enjoy great reputation for their advanced and precise quality worldwide.
Quality Advantage:
1.We set up a strict quality guarantee system according to the requirments of international management
standard ISO9001:2008.
2.We have not received complaints from customers on product quality right now.
service advantage:
1.To cater for different requirement from our customers, we offer various OEM service.
2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing
environment and requirements.
